~ Custom Filters in MVC - Authorization , Action, Result, Exception Filters ~
Filters in MVC are attributes which you can apply to a controller action or an entire controller. This will allow us to add pre and post behavior to controller action methods.
VIEW
Filters in MVC are attributes which you can apply to a controller action or an entire controller. This will allow us to add pre and post behavior to controller action methods.
There are 4 types of Filters. Which were described in above image.
Step 1: Create a simple MVC Web application. Lets see the Output Cache filter first.
I created a View and pertaining Action method. See them below.
ACTION METHOD
/// <summary>
/// OutputCache Test
/// </summary>
/// <returns></returns>
[OutputCache(Duration = 10)]
public ActionResult OutPutTest()
{
ViewBag.Date = DateTime.Now.ToString("T");
return View();
}
@{
ViewBag.Title = "OutPutTest";
}
<h2>OutPutTest</h2>
<h3>@ViewBag.Date</h3>

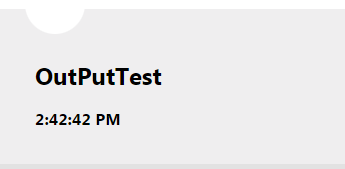

Output : so as per the current implementation, the view should be displaying current time with seconds. so for every refresh, the seconds part will be changed...
But observe the
[OutputCache(Duration=10)] attribute applied to action method. This will make the response cached for 10 seconds. Thus the seconds part will not be changed for next 10 seconds.
Step 2: Authorization Filter : This filter will be executed once after user is authenticated
In this step lets create a custom Authorization filter. For this create a class which inherits AuthorizeAttribute or implements IAuthorizationFilter interface. All we are doing here is just passing a message to View.
public class CustAuthFilter : AuthorizeAttribute
{
public override void OnAuthorization(AuthorizationContext filterContext)
{
filterContext.Controller.ViewBag.AutherizationMessage = "Custom Authorization: Message from OnAuthorization
method.";
}
}
Now we have our
CustomAuthFilter which will be executed immedealty after user is authenticated. But inorder to make it happen we need to apply this [CustAuthFilter] attribute on top either a custom action or to an entire controller itself.
ACTION METHOD
/// <summary>
/// Custom Authorization Filter Test
/// </summary>
/// <returns></returns>
[CustAuthFilter]
public ActionResult AuthFilterTest()
{
return View();
}
VIEW
@{
ViewBag.Title = "AuthFilterTest";
}
<h2>AuthFilterTest</h2>
<h3>@ViewBag.AutherizationMessage</h3>
We have another method OnUnauthorizedRequest event to redirect the unauthorized users to some default pages.
OUTPUT:
Step 3: Action Filter : There are 4 events available in an action filter.
OnActionExecuting- Runs before execution of Action method.OnActionExecuted- Runs after execution of Action method.OnResultExecuting- Runs before content is rendered to View.OnResultExecuted- Runs after content is rendered to view.
So lets create a
CustomActionFilter. Create a class inherting ActionFilterAttribute class of implementing IActionFilter and IResultFilter interfaces.
public class CustomActionFilter : ActionFilterAttribute
{
public override void OnActionExecuting(ActionExecutingContext filterContext)
{
filterContext.Controller.ViewBag.CustomActionMessage1 = "Custom Action Filter: Message from OnActionExecuting
method.";
}
public override void OnActionExecuted(ActionExecutedContext filterContext)
{
filterContext.Controller.ViewBag.CustomActionMessage2 = "Custom Action Filter: Message from OnActionExecuted
method.";
}
public override void OnResultExecuting(ResultExecutingContext filterContext)
{
filterContext.Controller.ViewBag.CustomActionMessage3 = "Custom Action Filter: Message from OnResultExecuting
method.";
}
public override void OnResultExecuted(ResultExecutedContext filterContext)
{
filterContext.Controller.ViewBag.CustomActionMessage4 = "Custom Action Filter: Message from OnResultExecuted
method.";
}
}
Now all we need to do is to apply [
CustomActionFilter] attribute on an Action Method.
ACTION METHOD
/// <summary>
/// Custom Action Filters Test
/// </summary>
/// <returns></returns>
[CustomActionFilter]
public ActionResult ActionFilterTest()
{
return View();
}
VIEW
@{
ViewBag.Title = "ActionFilterTest";
}
<h2>ActionFilterTest</h2>
<br />
<br />
<h3>@ViewBag.CustomActionMessage1</h3>
<br />
<h3>@ViewBag.CustomActionMessage2</h3>
<br />
<h3>@ViewBag.CustomActionMessage3</h3>
<br />
<h3>@ViewBag.CustomActionMessage4</h3>
OUTPUT:
Step 4: Exception Filter: This filter is used to capture any execptions if raised by controller or an action method. Create a class which will inherit
FilterAttribute class and implement IExceptionFilter interface.
public class CustExceptionFilter : FilterAttribute, IExceptionFilter
{
public void OnException(ExceptionContext filterContext)
{
filterContext.Controller.ViewBag.ExceptionMessage = "Custom Exception: Message from OnException
method.";
}
}
Now all we need to do to handle any exceptions or erros is to apply [
CustExceptionFilter] attribute on an Action Method.
ACTION METHOD
/// <summary>
/// Custom Exception Filter Test
/// </summary>
/// <returns></returns>
[CustExceptionFilter]
public ActionResult ExceptionFilterTest()
{
return View();
}
VIEW
@{
ViewBag.Title = "ExceptionFilterTest";
}
<h2>ExceptionFilterTest</h2>
<br />
<h3>@ViewBag.ExceptionMessage</h3>
OUTPUT:
Now compare the output with the view definition and see the differences.
First thing is , we dint have any message from OnResultExecuted event.
Reason: That event will be executed after content is rendered to view, so by that time the view is rendered,
OnResultExecuted event is not and message is not yet assigned to ViewBag.
Second thing, we dint have any message from exception filter. If there is any exception raised by the code, then the Exception Filter codee will come into picture. With this , we have covered different kinds of filters in MVC and how to create custom filters and how to apply them.
